MIL-PRF-52345 Flow Control Kit, HoselineThis specification covers a hoseline flow control kit for the distribution of bulk liquid fuel with a 4-inch collapsible hoseline.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-PRF-52345D
10.00 ± .25
2X .625 REF
STRAINER
SEAM LOCATION OPTIONAL
2X ∅ 4.330 REF
B
2X .375 REF
SEE VIEW
COUPLING
A
SEE VIEW
.188
.188
1  1.00-3.00
16
.12
R .06
.25
.125 ALL HOLES
.188
VIEW B
VIEW A
ENLARGED
ENLARGED
(FLAT PATTERN)
REFERENCE ONLY
REFERENCE ONLY
NOTES:
1. CONFIGURATION SHOWN IS NON-MANDATORY; IT IS ONLY
REPRESENTATIVE OF A DESIGN DEEMED ACCEPTABLE
2. DIMENSIONS ARE IN INCHES.
3. UNLESS OTHERWISE SPECIFIED TOLERANCES: .XXX ±.005, .XX ± .03

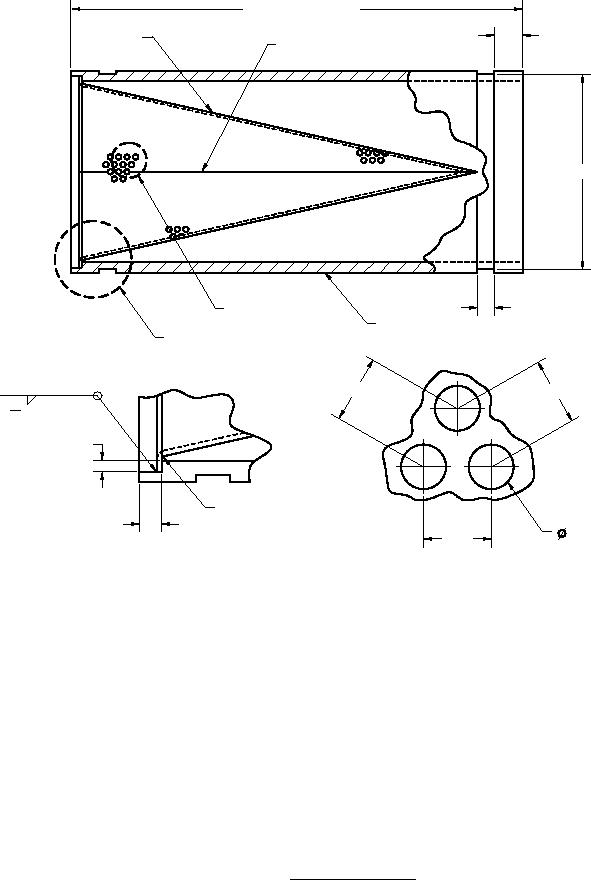

FIGURE 1. Strainer assembly - Example.
