MIL-PRF-52347D
3.3.2.5 Hose saddles. Hose saddles shall be constructed as shown on drawing
D13200E4792.

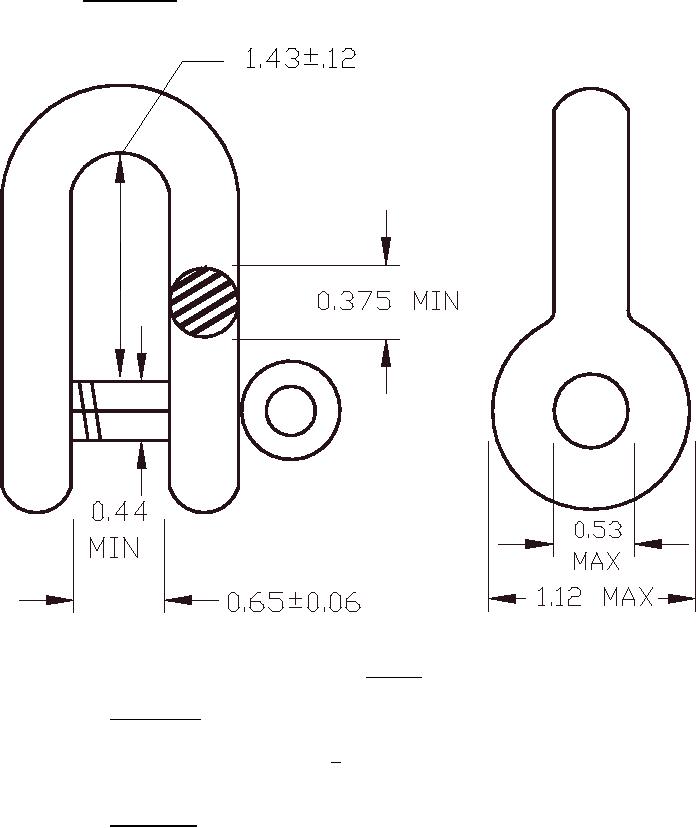

FIGURE 2. Shackle.
3.3.2.6 Steel pickets. The pickets shall be solid steel bars conforming to UNS G10200,
UNS G10180 (see SAE HS1086), or equivalent strength material. The diameter shall be not less
than 0.750 in. and the length shall be 35.75 in. + 0.25 in. One end of each bar shall be sharpened
to a 30-degree included angle point.
3.3.2.7 Steel blocks. The steel block shall conform to GGG-B-490, type II, single
sheave, 4-inch shell length or commercial equivalent. Center pin diameter shall be not less than
0.360 in. Rig assemblies required for blocks shall be as specified (see 6.2).
